TX-950 Metal Detector Professional Underground Depth Scanner Search Finder Gold Detec …

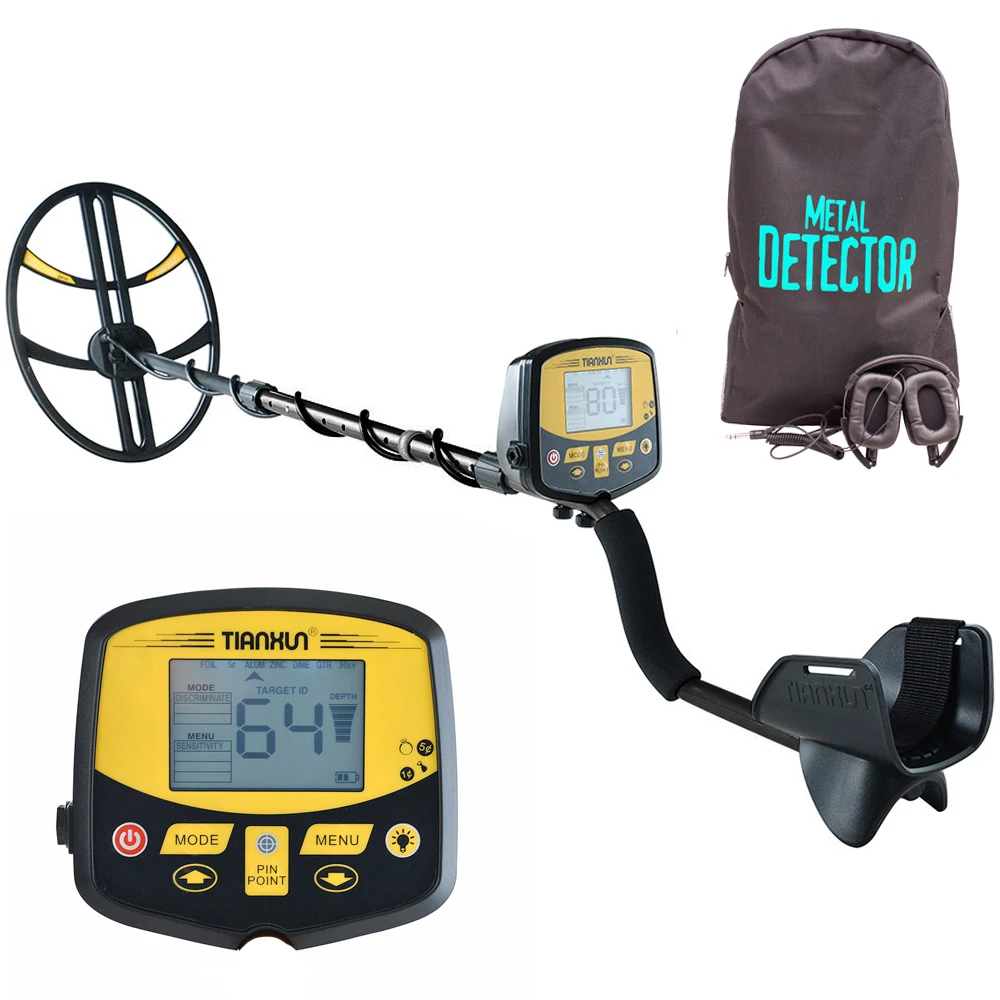

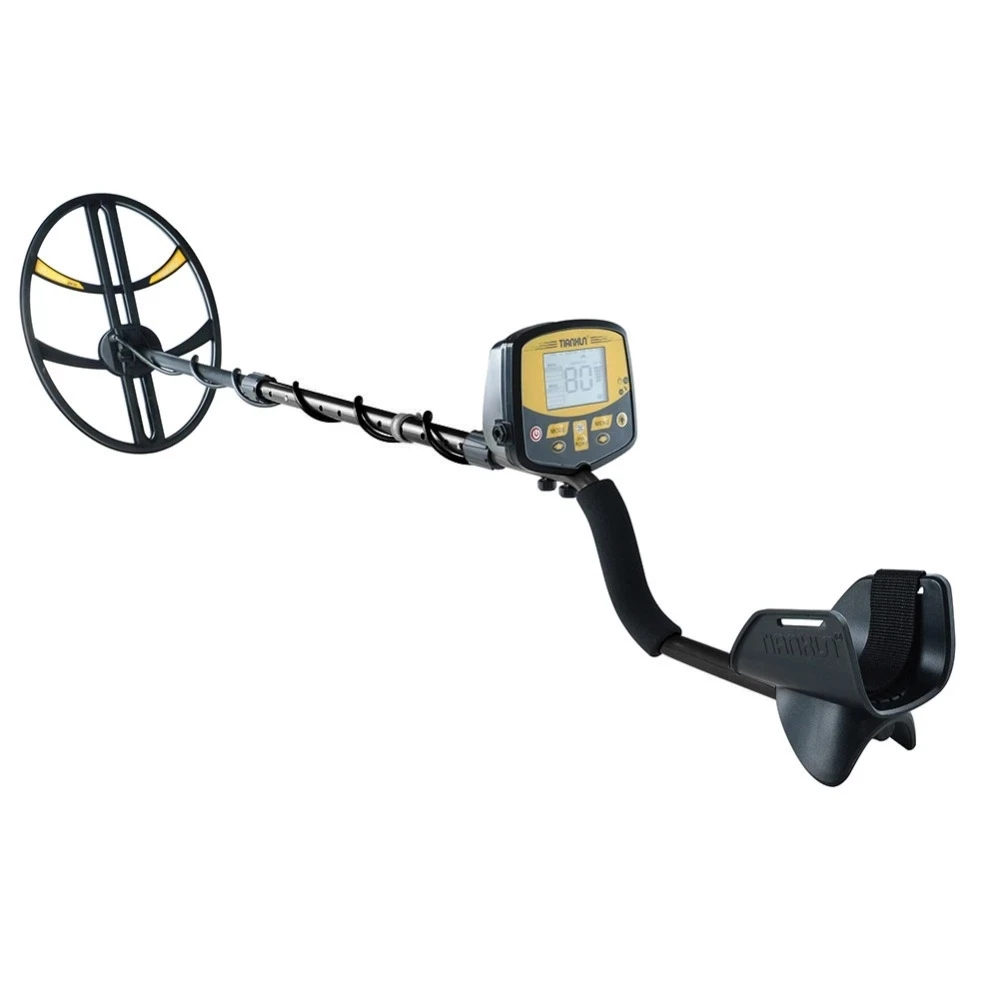

TX-950 Metal Detector Professional Underground Depth Scanner Search Finder Gold Detector Treasure Hunter Detecting Pinpointer

Note: The search coil is waterproof, but the control housing is not waterproof.

Specification:
Model: B73979
Product Name: Metal Detector
Color: Black + Brown
Material: ABS + Aluminum Alloy
Power Type: Battery-Powered
With LCD Screen Or Not: Yes
DIY Supplies: Electrical
Detection Depth: 280mm
3 Detection Mode: All Metal (Detect all kinds of metal)
(Discriminate metal type), Pinpoint(Find the exact location of a target)
3 Tone Audio Identification: Low tone(ID: 1-39), MEDIUM TONE(ID: 40-79), high tone(ID: 80-99)
Detect Objects: Metal(Iron nail, iron covering, aluminum ring, small aluminum product, coins, gold, bronze, silver)
Frequency: 7.68KHz
Voltage: 7.2-9V
Power Supply: 1 * 9V 6F22 Battery (Not Included)
Current: Standby: 40mA, Max.: 120mA
Indication Mode: LCD Mode and Sound Mode
Sensitivity: Adjustable, 1-12 Level
Control: Power Switch
Volume: Adjustable
Search Coil: Waterproof, Interchangeable
Application: Testing metal foreign body of raw materials, fuel and food, Detection of underground pipeline & line, Archaeology, Exploration, Found buried treasures of gold, silver and metal artifacts.
Search Coil Size: 380 * 290mm / 15.0 * 11.4in (L*W)
LCD Control Unit Size: 135 * 120mm / 5.3 * 4.7in (L*W)
Adjustable Height of Detector: 1070~1340mm / 35.0~52.8inch
Item Size: 380 * 290 * 1340mm / 15.0 * 11.4 * 52.8in
Safety Standard Certification: CE, Rohs

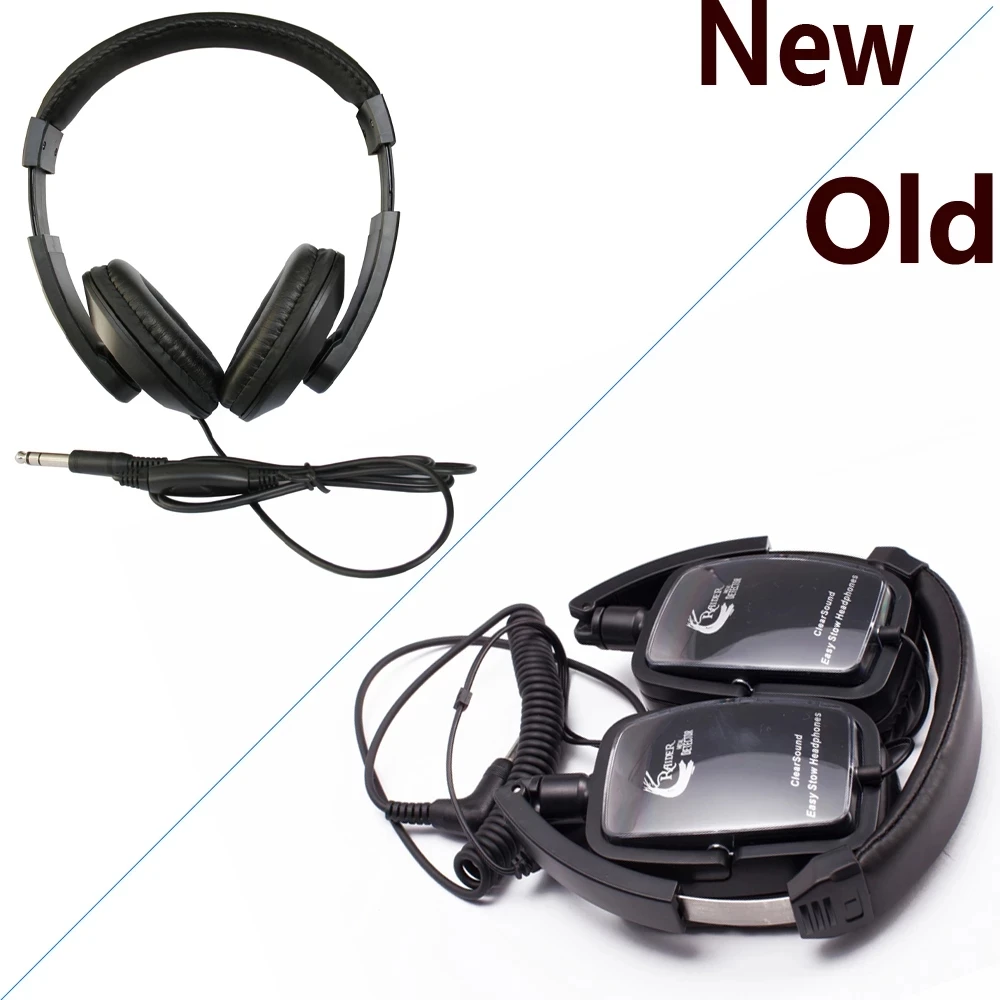

Clear Sound Headphones:
40MM Dia. Driver. Unit.
Impedance: 32 oHMS
Frequency Response: 20-20.000Hz
Maximum power input:100mW
Sensitivity: 108dB+/- 3dB
Right angle stereo plug: 1/4:(6.3mm)
Cable Length: 41"(1m), 82" (2.1m) when fully extended
In- Line volume control

Features:
3 Detection Mode: All Metal (Detect all kinds of metal), Disc (Discriminate metal type), Pinpoint(Find the exact location of a target), meeting for different demands.
3 Tone Audio Identification – Low tone(ID: 1-39), medium tone(ID: 40-79), high tone(ID: 80-99).
Elimination and Discrimination – Ignore junk metal & undesirable objects to find the valuable metal items by setting the Elimination and Discrimination.
Pinpoint Function – Pinpointing is the process of finding the exact location of a buried object with switchable backlight LCD display.
Adjustable Sensitivity – Adjust 12 kinds of different sensitivity settings for different targets or environments.

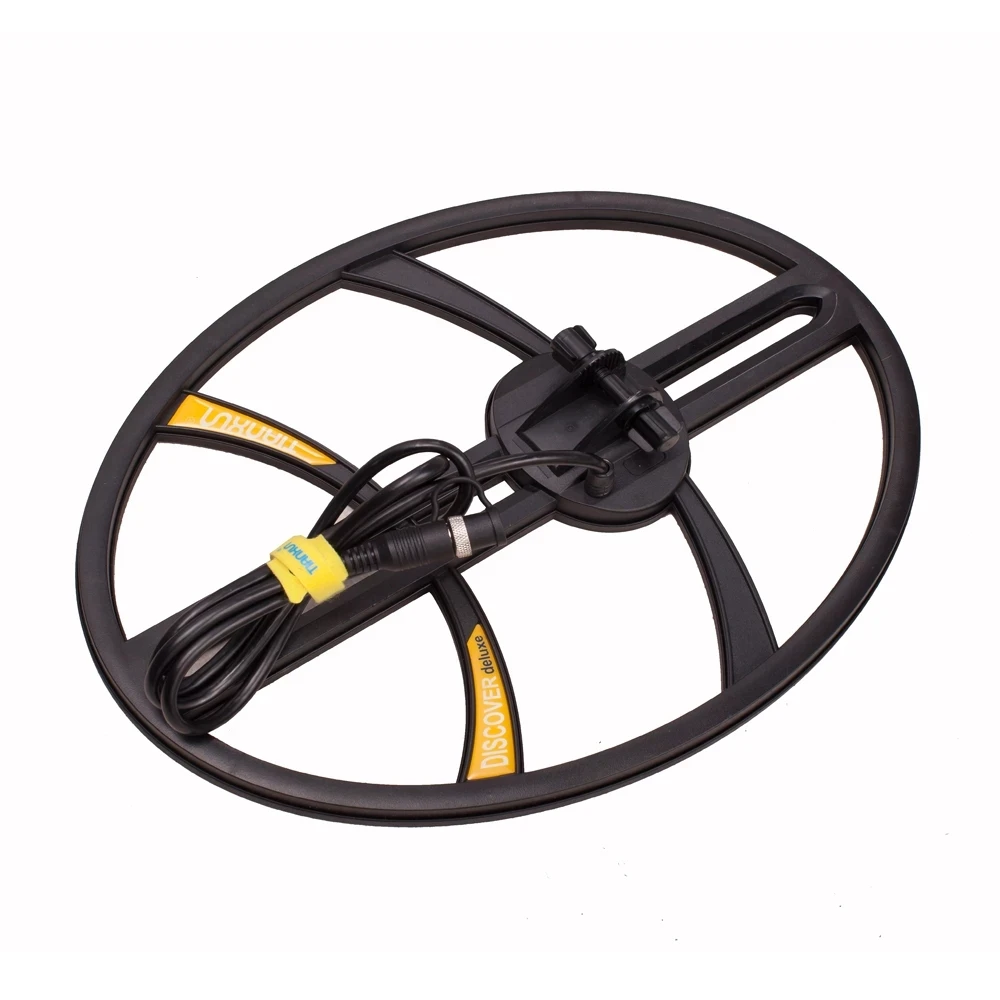

Super Large DD Search Coil – 15.0" x 11.4" super large waterproof search coil with protective cover for anti-knock and safe use.
Adjustable Height of Metal Detector – You can adjust the connecting stem length for comfortable use.
Headphone Jack – Let you connect headphones(included) and operate without disturb.
Volume Control – You can adjust the output volume of the loud speaker or headphone.
Wide Applications – Great for detecting gold & silver jewelry, coins and other metal in the ground.

Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3.Although instruction is included.Professional Installation Is Highly Recommended!

Package Included:
1 * Metal Detector Main Unit
2 * Connecting Rod
1 * Waterproof Super Large DD Search Coil
1 * Metal Detector Bag
1 * Headphone
1 * User Manual(English)

Metal Detector Terminology :

ELIMINATION

Ference to a metal being "eliminated" means that the detector will not emit a tone ,

nor light up an indicator ,when a specifired object passes through the coil's detetcion field

DISCRIMINATION

Allows the user to ignore trash and otherwise undesirable objects

RELIC

A relic is an object of interested of its age or its association with

the past ,Many relics are made of iron ,but can also be made of broze or precious metals

IRON

Examples of old cans , pipes, bolts, and nails .some of the value

relics and part of old structure ,vehicles can also be composed of iron .

PINPIONTING

Pinpionting is the process of finding the exact location of a buried

object .

GROUND BALANCE

This detector incorporates properietary circuitry to eliminate fale

signals from severe ground condictions

BATTERY  LIFE

Expect about 20-25 hours of life fro a volt alkaline battery .Rechargeable

batteries can provide up to 8 hours of usage per charge .
