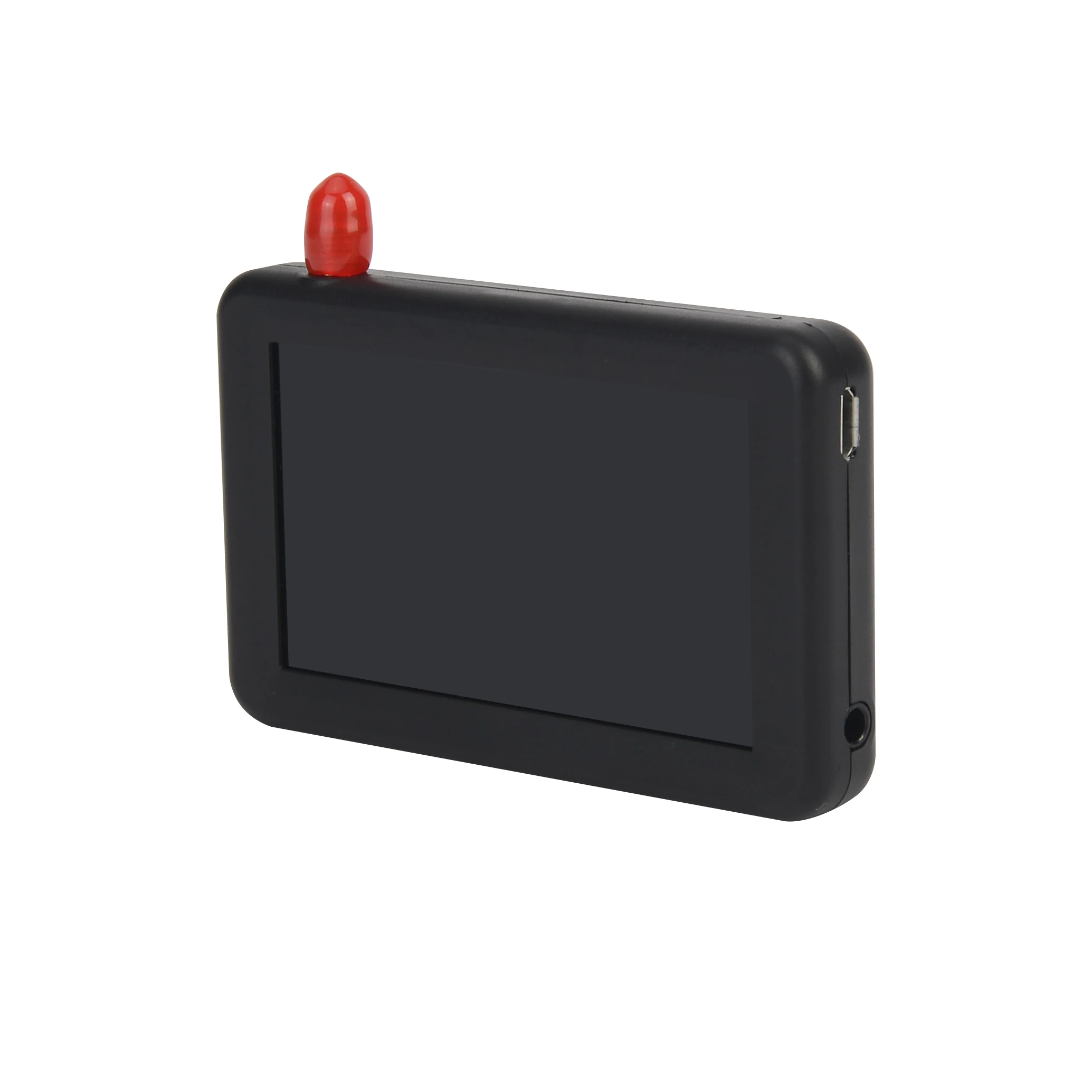

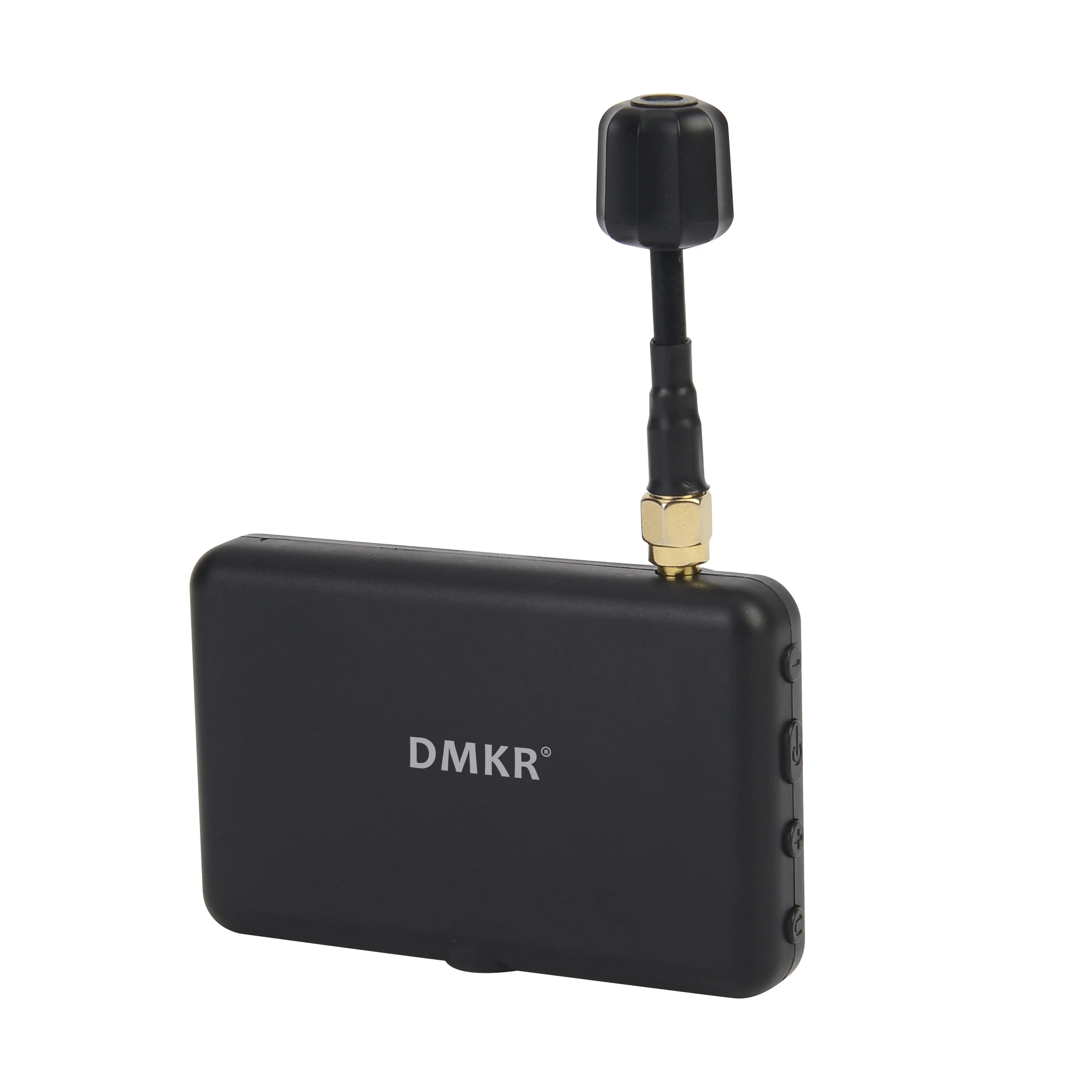

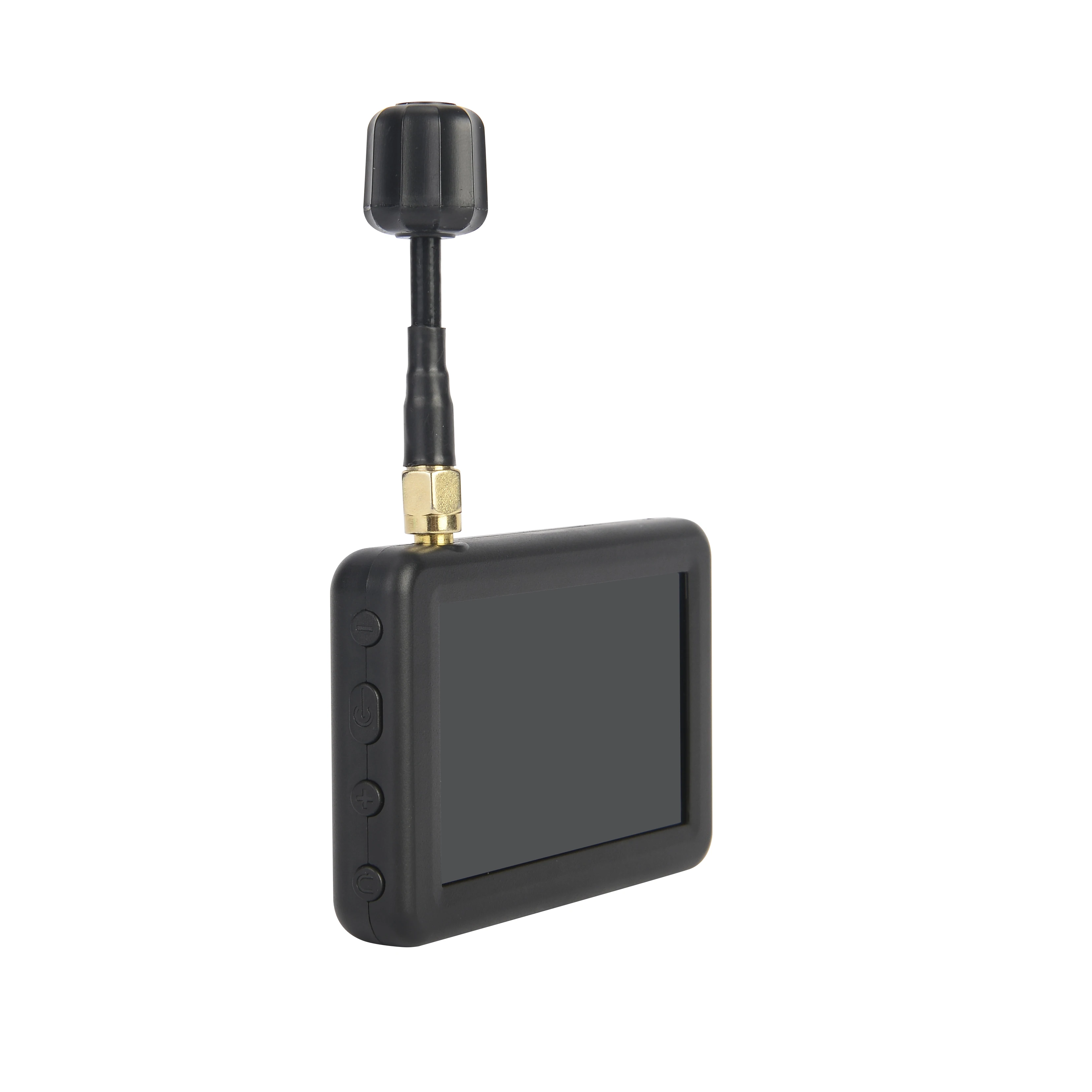

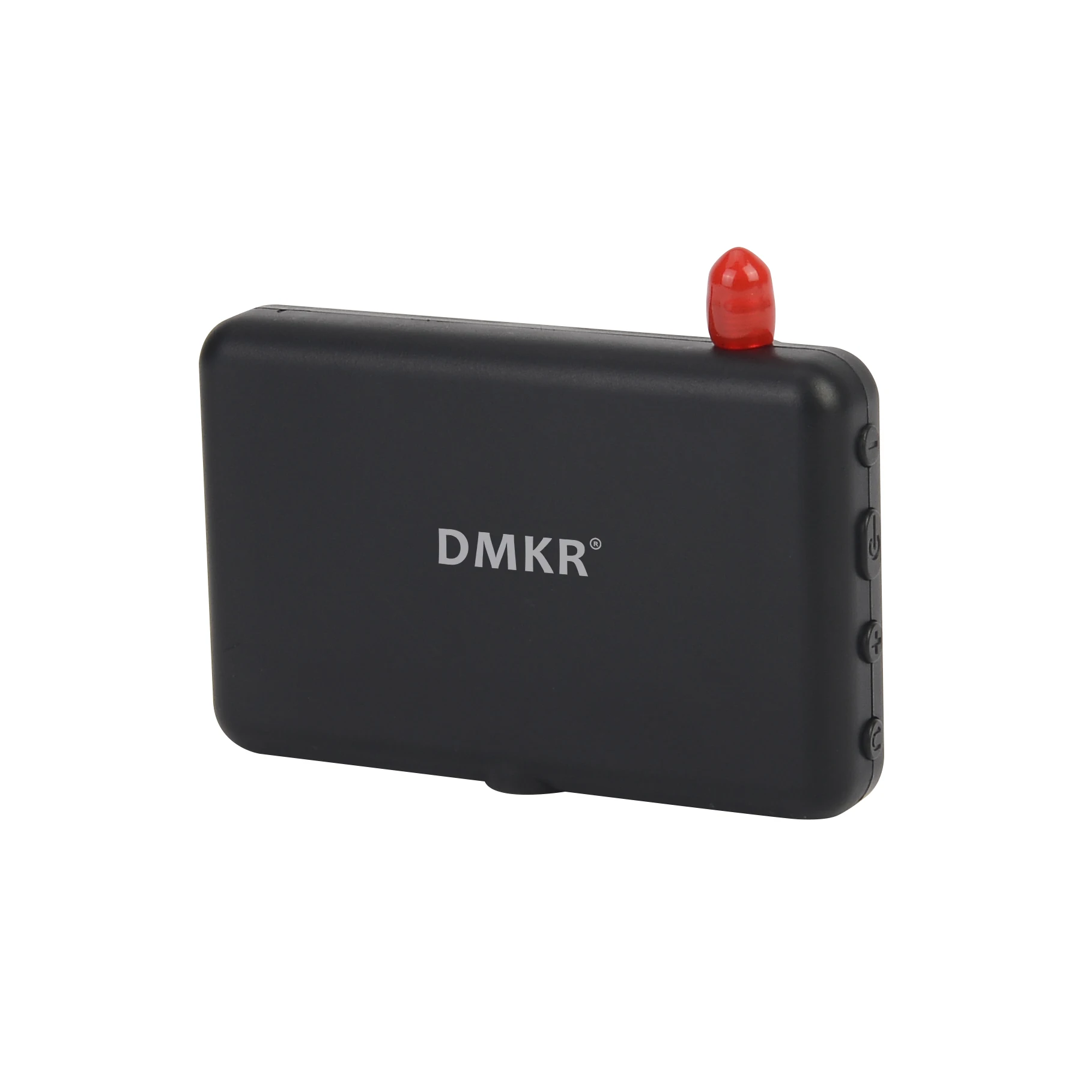

DMKR LS-5804 Micro 3 inch 5.8G 40CH FPV Monitor Mini Handheld Display 16:9 480×320 Auto Search Built-in Battery for RC FPV Drone
Feature:
● Small size and light weight;
● Low power consumption, Working current 360~400mA;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/800mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support AV signal output (Connect external DVR);
● It can be used as a receiver for "DJI" and other video glasses. With interest
screen function;
Specification:
Model
LS-5804
Name
Mini FPV MONITOF
LCD Screen
Screen : 3.0 Inch IPS LCD
Resolution: 480*320
Display Ratio: 16:9
View Angle: 360 ° without dead angle
Brightness: 500cd/m² with high brightness backlight LED
Video delay
Video time-delay less than 20ms
Interface
Antenna RP-SMA male
USB
To charge the battery
AV Jack
External video signals input or internals AV signal output
Languages
English and Chinese
Power
Supply
Power adapter: DC5V/1A (USB interface)
Battery:
3.7V/800mAh,Each full charge revive around 2hr working time
Power Consumption:
*The device operating current of 360~400mA at 3.7~4.2V;
*Built-in battery maximum charge current of 800mA;
Wireless
Frequency Table(MHz)
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band A
5865 5845 5825 5805 5785 5765 5745 5725
Band B
5733 5752 5771 5790 5809 5828 5847 5866
Band E
5705 5685 5665 5645 5885 5905 5925 5945
Band F
5740 5760 5780 5800 5820 5840 5860 5880
Band R
5658 5695 5732 5769 5806 5843 5880 5917
Dimensions
and weight
Body size:8.4cm * 5.3cm * 1.4cm
Packing size: 12cm * 11cm * 25cm
Body weight: 65g(not included antennas)
Package weight: 167g
Controls Diagram:
Description:
① Key 1: Short press for Band+ (Change bands A-B-E-F-R circularly).
② Key 2: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.
③ Key 3: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
④ Key 4: Short press for Auto-Searching (Automatic selection of the strongest channel).
⑤ Micro-USB Charging port: Supports DC5V only.
⑥ AV Jack: In RF receiving mode can output AV signal; In AV mode can enter the video
signal.
⑦ Antenna port : RP-SMA male.
⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.
Menu Operation Instructions:
In normal mode, press Key 2 to enter the MENU mode.
In MENU mode:
① Key 2: Select the option bar.
② Key 1: Value -.
③ Key 3: Value +
④ Key 4: Auto-Searching
AV port Instructions:
Safety instruction:
1. Read the entire instruction manual to become familiar with the features of the
product before operating.
2. Age Recommendation: Over 14 years old. Using any near eye displays on
children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.
4. Please use standard USB charger, charging voltage can only be 5V.
5. AV output and Video input cannot work at the same time, It is forbidden to
insert external video in RF receiving mode.
6. Please do not use corrosive cleaning agents to clean the product!
